Lindapter Type COM Decking Fixing
- Brand: Lindapter
From £163.00 ex. VAT per 100From £195.60 inc. VAT per 100
Description
High quality, cost effective decking fixing designed for the ComFlor® 60 and 80 profiles manufactured by Tata Steel.
Overview

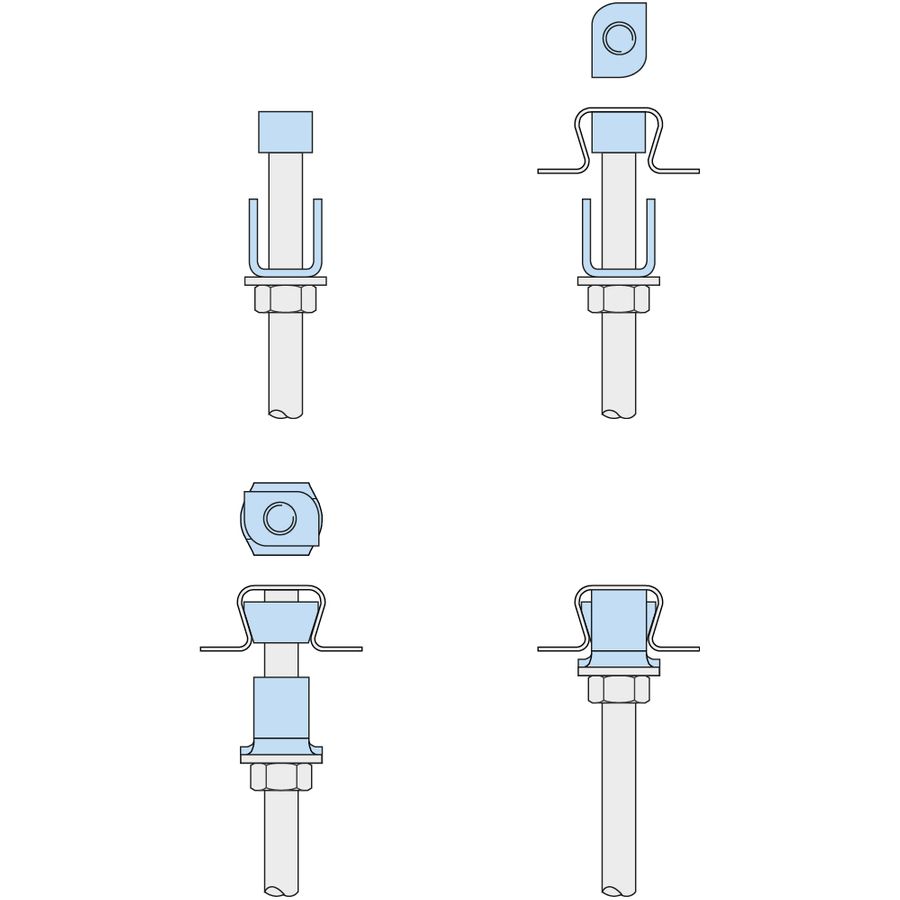

The Type COM is a high quality, cost effective decking fixing designed to fit inside the dovetail re-entrant channel of the ComFlor® 60 and ComFlor® 80 composite decking profiles manufactured by Tata Steel. The fixing comes in two parts (locking plate and wedge) and provides a zero-impact method of connection that avoids delamination and damage to the concrete deck. After the concrete deck has been poured and has reached full strength the Type COM is installed with an appropriate threaded rod from where building services can be easily and quickly suspended.
Features & Benefits
- Quick and easy to install.
- Adjustable for precise alignment.
- Zero impact connection to roof deck.
- No damage to the decking.
- No requirement for specialist labour / tools.
- Independently fire tested to BS EN 1991-1-2.
Approvals
- CE Marked
- Manufactured to ISO9001 and ISO14001
Properties
- Locking Plate manufactured from pre-galvanised strip.
- Wedge manufactured from cold formed steel, zinc plated.
- Reaction to fire: A1 (Steel)
Durability and corrosion protection:
| Corrosivity Class | Galvanised Steel | Electroplated Steel |
| C1 | More than 50 years | More than 20 years |
| C2 | More than 50 years | More than 5 years |
| C3 | More than 20 years | Not Suitable |
