Lindapter Type LB2 Lindibolt 2

Lindapter
  • Brand: Lindapter
From £1,076.00 ex. VAT per 100From £1,291.20 inc. VAT per 100

Description

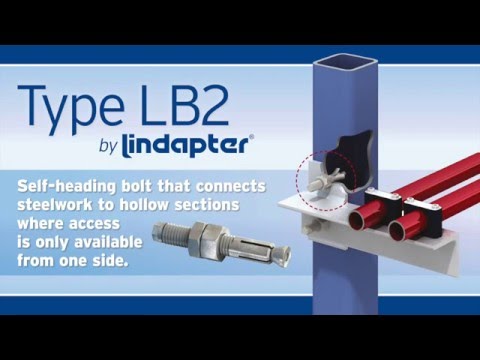

Self-heading bolt suitable for connecting steelwork to hollow sections where access is only available from one side.

Overview

The Type LB2 Lindibolt® is the original threaded stud expansion bolt which has been designed specifically to be used on refurbishment projects. This unique product will fit into standard pre-drilled steelwork, in typical clearance hole diameters of M10, M12, M16, M20 and M24.

The self-heading expansion bolt requires access to only one side of hollow section, and offers a faster alternative to welding or through-bolting, enabling contractors to reduce construction time and labour costs. It’s an incredibly flexible solution as it can be adjusted during installation to fit various thicknesses of steelwork, for example the M24 has a clamping range of 18–72mm.

Also suitable for blind connections where access is available from one side only. Manufactured in mild steel with a zinc plated finish or in stainless steel grade 316. Download datasheet below for further information.

Features & Benefits

  • Fits standard clearance holes
  • Cost saving installation from one side.
  • For square, rectangular and circular hollow sections.

Approvals

  • CE Marked
  • Manufactured to ISO9001 and ISO14001

Properties

  • Manufactured from mild steel with zinc plating or stainless steel grade 316.
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Electroplated Steel Stainless Steel
C1 More than 20 years More than 50 years
C2 More than 50 years More than 50 years
C3 Not Suitable More than 50 years

Product Options

Part CodeNameStockPrice (per 100)QtyBolt ZLength Y (mm)Hole min d (mm)Hole max d (mm)Safe Working Loads Tensile (kN)Safe Working Loads Single Shear (kN)Clamping Length W (mm)Projection P (mm)Main Body (B) and Nut (C and D) Thread ZMain Body (B) and Nut (C and D) Tightening Torque (Nm)Main Body (B) and Nut (C and D) A/F (mm)Setscrew (F) Bolt FSetscrew (F) Tightening Torque (Nm)Setscrew (F) A/F (mm)
LB10Lindapter M10 Type LB2 Lindibolt 2

Live Stock Unavailable

In Stock

Available to Order

£1,076.00 ex. VAT £1,291.20 inc. VAT

M10741111.533.47 - 307.5 - 10M102017M568
LB12Lindapter M12 Type LB2 Lindibolt 2

Live Stock Unavailable

In Stock

Available to Order

£1,365.00 ex. VAT £1,638.00 inc. VAT

M12851313.55510 - 369 - 12M123119M61110
