Lindapter M12 Type HB Hollo-Bolt Hexagonal Head

Lindapter
  • Brand: Lindapter
From £970.00 ex. VAT per 100From £1,164.00 inc. VAT per 100

Description

Hollo-Bolt Hexagonal Head is an expansion bolt that only requires access from one side of the Structural Hollow Section (SHS)

Overview

Hollo-Bolt expansion bolts require access to only one side of the Structural Hollow Section (SHS), and offer a faster alternative to welding or through-bolting, enabling contractors to reduce construction time and labour costs. Installation is quickly carried out by inserting into pre-drilled steelwork and tightening with a torque wrench. Also suitable for blind connections where access is available from one side only.

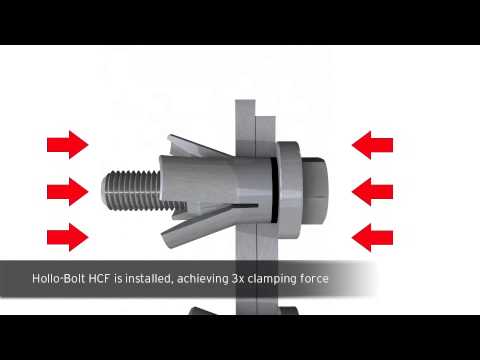

Sizes M16 and M20 feature a High Clamping Force (HCF) mechanism to produce three times more clamping force than the same sized product without the mechanism.

Download datasheet below for further information.

Features & Benefits

  • Fast, cost saving installation from one side.
  • For square, rectangular and circular hollow sections.
  • High resistance to shear and tension.
  • Unique High Clamping Force design (size M16 & M20)
  • Other head types available.

Approvals

  • CE Marked
  • TÜV Nord Approved
  • ICC ES Approved
  • Manufactured to ISO9001 and ISO14001

Properties

  • Manufactured from mild steel or stainless steel grade 316.
  • Available with zinc plated, hot dip galvanised or sheraplex finish.
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Galvanised Steel Electroplated Steel Sheraplex Stainless Steel
C1 More than 50 years More than 50 years More than 50 years More than 50 years
C2 More than 50 years More than 20 years More than 50 years More than 50 years
C3 More than 20 years More than 10 years More than 20 years More than 50 years

Product Options

Part CodeNameStockPrice (per 100)QtyBolt (Z)Height (H)Length (B) (max)Clamping Thickness (W)Outer Ply min tSleeve Outer (S)Collar (D)Collar (A/F)Tightening TorqueSafe Working Loads - TensileSafe Working Loads - Single Shear
LINHB121Lindapter M12 Size 1 Hollo-Bolt JS-500 to suit 3 to 25mm Fixing thickness

Live Stock Unavailable

In Stock

Available to Order

£970.00 ex. VAT £1,164.00 inc. VAT

M1214.5533 - 25-19.7532308010.515
