Lindapter M12 Type LS Girder Clamp

Lindapter
  • Brand: Lindapter
From £1,482.00 ex. VAT per 100From £1,778.40 inc. VAT per 100

Description

Stainless steel, self-adjusting girder clamp used to quickly connect steel beams with flat or tapered flanges and resist moderate tensile loading. Provides excellent corrosion resistance.

Overview

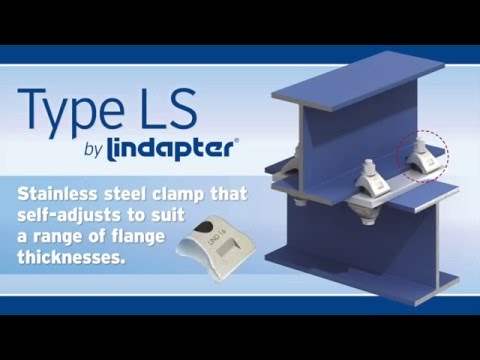

The Type LS girder clamp is used to achieve a fast steelwork fixing connection between two steel beams or other steel sections where moderate load capacities are present. Manufactured from high strength cast stainless steel grade 316 to provide excellent corrosion resistance. The clamp also self-adjusts to suit flange thicknesses between 3mm and 30mm. Suitable for use on parallel and tapered flanges up to 10°.

Features & Benefits

  • Made from high strength stainless steel grade 316.
  • Self-adjusts to suit 3mm - 30mm flange thicknesses (size M20).
  • For parallel and tapered flanges up to 10°.
  • The tail spans slotted clearance holes.

Approvals

  • CE Marked
  • TÜV Nord Approved
  • Manufactured to ISO9001 and ISO14001

Packing Pieces

Packing pieces are available to increase the clamping range. Download datasheet below for further information.

Location & End Plates

These plates ensure the clamps and bolts are located in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet below for further information.

Properties

  • Manufactured from stainless steel to BS EN 3146.
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Stainless Steel
C1 More than 50 years
C2 More than 50 years
C3 More than 50 years

Product Options

Part CodeNameStockPrice (per 100)QtyBolt A4-70 ZTensile / 1 Bolt (FOS 5:1) kNSlip 1) / 2 Bolts (FOS 2:1) kNTightening Torque * NmClamping Range V mmY mmX mmT mmWidth mm
LS12Lindapter M12 Type LS Girder Clamp Stainless Steel

Live Stock Unavailable

In Stock

Available to Order

£1,482.00 ex. VAT £1,778.40 inc. VAT

M1031.5404206417 - 1918 - 2416 - 2138
