Lindapter M24 Type LR Girder Clamp
- Brand: Lindapter
Self-adjusting girder clamp used to quickly connect steel beams with flat or tapered flanges and resist moderate tensile loading.

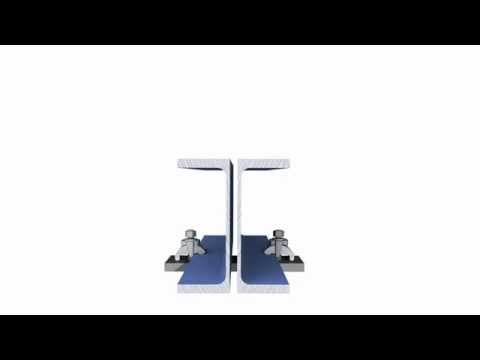

The Type LR girder clamp is used to achieve a fast steelwork fixing connection between two steel beams or other steel sections where moderate load capacities are present. It consists of two parts, the clip and the saddle, which allow the clamp to self-adjust to suit flange thicknesses between 3mm and 24mm. Suitable for use on parallel and tapered flanges up to 15°. Manufactured from malleable iron and available with a hot dip galvanised or zinc plated finish to provide high performance and anti-corrosion protection.
Features & Benefits
- Clamping ranges from 3mm - 24mm (size M24).
- For parallel and tapered flanges up to 15°.
- The leg of the saddle prevents the clamp from rotating.
- The tail spans slotted clearance holes.
- CE Marked
- Lloyd’s Register Approved
- TÜV Nord Approved
- Manufactured to ISO9001 and ISO14001
Packing pieces are available to increase the clamping range. Download datasheet below for further information.
Location & End Plates
These plates ensure the clamps and bolts are located in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet below for further information.
- Manufactured from malleable iron to BS EN 1562.
- Available with zinc plated or hot dip galvanised finish.
- Reaction to fire: A1 (Steel)
- Durability and corrosion protection:
|Corrosivity Class||Galvanised Steel||Electroplated Steel|
|C1||More than 50 years||More than 20 years|
|C2||More than 50 years||More than 5 years|
|C3||More than 20 years||Not Suitable|
