Lindapter M16 Type FC Girder Clamp

Lindapter
  • Brand: Lindapter
From £161.75 ex. VAT per 100From £194.10 inc. VAT per 100

Description

All-in-one full connection clamp device used to connect steel sections with flat or tapered flanges and to resist moderate tensile loading.

Overview

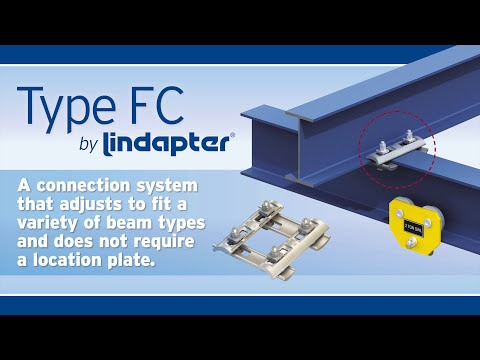

The Type FC girder clamp is a full connection system that adjusts to fit a variety of beam types with flat or tapered flanges up to 10o. It is supplied as a pre-configured assembly that does not require a location plate and is ready for installation ‘out of the box’. Capable of resisting moderate tensile loadings or low slip loadings. Can be used to connect beams that are positioned at angles between 45° and 80° depending on beam flange widths. Manufactured from forged steel with zinc plated and JS500 finish to provide high performance and anti-corrosion protection.

Features & Benefits

  • ‘All-in-one’ device for connecting steel sections.
  • Adjustable to suit both beam width and flange thickness.
  • Quick and easy to install.
  • For parallel and tapered flanges up to 10°.
  • No location plate required.

Approvals

  • CE Marked
  • Manufactured to ISO9001 and ISO14001

Properties

  • Manufactured from forged steel to BS EN 1562.
  • Available with zinc plated JS500 finish.
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Electroplated Steel with JS500
C1 More than 50 years
C2 More than 20 years
C3 More than 10 years

Product Options

Part CodeNameStockPrice (per 100)QtyT Bolt 8.8Tensile / 4 Bolts kNSlip / 4 Bolts kNTightening Torque * NmFlange Thickness V mmFlange Width 1) mmT mmB mm
FC16Lindapter M16 Type FC Girder Clamp

Live Stock Unavailable

In Stock

Available to Order

£161.75 ex. VAT £194.10 inc. VAT

M16307.51474358675 - 18022 - 27304
