Lindapter Type VN Decking Fixing

Lindapter
  • Brand: Lindapter
From £114.00 ex. VAT per 100From £136.80 inc. VAT per 100

Description

V-Nut decking fixing designed to fit inside the re-entrant channel of several composite floor decking profiles.

Overview

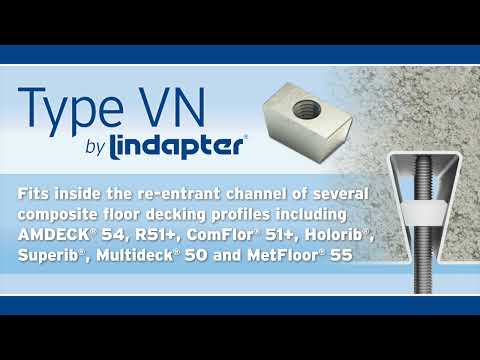

The Type VN is a versatile and cost effective decking fixing designed to fit inside the dovetail re-entrant channel of several composite floor decking profiles including AMD54, R51+, ComFlor® 51+, Holorib®, Superib®, Multideck® 50 and MetFloor® 55.

After the concrete deck has been poured and has reached full strength the Type VN can be installed. The fixing provides a zero-impact method of connection that avoids delamination and damage to the concrete deck. The V-Nut with an appropriate threaded rod is inserted into the re-entrant channel and made secure by rotating it 90o so that the tapered edges engage the sides of the re-entrant channel. Building services can then be easily and quickly suspended from the roof deck.

Features & Benefits

  • Universal V-Nut for several decking profiles.
  • Quick and easy to install.
  • Adjustable for precise alignment.
  • Zero impact connection to roof deck.
  • No damage to the decking.
  • No requirement for specialist labour / tools.

Approvals

  • CE Marked
  • Manufactured to ISO9001 and ISO14001

Properties

  • Manufactured from mild steel with a zinc plated finish
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Galvanised Steel Electroplated Steel
C1 More than 50 years More than 20 years
C2 More than 50 years More than 5 years
C3 More than 20 years Not Suitable

Product Options

Part CodeNameStockPrice (per 100)QtyRod min 4.6 Tensile / 1 Rod kNTightening Torque Nm
LNVN010Lindapter M10 Type VN Decking Fixing

Live Stock Unavailable

In Stock

Available to Order

£114.00 ex. VAT £136.80 inc. VAT

M102.110
