Lindapter Type FF FloorFast®

Lindapter
  • Brand: Lindapter
From £620.00 ex. VAT per 100From £744.00 inc. VAT per 100

Description

An innovative floor fixing for securing steel chequer plate flooring to the supporting steelwork without the need for on-site drilling or welding.

Overview

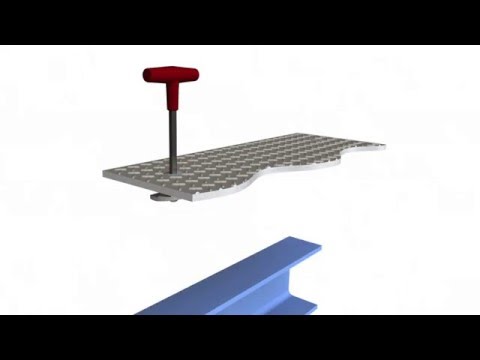

The Type FF FloorFast fixing eliminates the need for costly scaffolding or elevated floors as access to the underside of the flooring is not required. Installation is carried out quickly and safely from above, often by one person, significantly reducing costs. The cast body along with the unique stepped clamping face, which locks under the steelwork, provides outstanding clamping force and a secure connection.

Download datasheet below for further information.

Features & Benefits

  • Superior clamping force from the cast body.
  • Lloyd’s Register Type Approval for resistance to shock and vibration.
  • Zero protrusion above the surface of the floor plate.
  • Not suitable for tapered flanges.

Approvals

  • CE Marked
  • Lloyd’s Register Approved
  • Manufactured to ISO9001 and ISO14001

Properties

  • Manufactured from malleable iron to BS EN 1562 or stainless steel grade 316.
  • Available with zinc plated or hot dip galvanised finish.
  • Reaction to fire: A1 (Steel)
  • Durability and corrosion protection:
Corrosivity Class Galvanised Steel Electroplated Steel Stainless Steel
C1 More than 50 years More than 20 years More than 50 years
C2 More than 50 years More than 5 years More than 50 years
C3 More than 20 years Not Suitable More than 50 years

Product Options

Part CodeNameStockPrice (per 100)QtyBolt min 4.6 ZFloorplate Thickness t mmFlange Thickness Standard - mmWith Ferrule 2) 10 mm20 mm30 mmHole Ø d mmDimensions Countersunk Ø for Bolt BZP D mmHDG D mmCountersunk Depth for Bolt BZP t1 mmHDG t1 mmTightening Torque NmHexagon Key mm
FF10Lindapter M10 Type FF FloorFast®

Live Stock Unavailable

In Stock

Available to Order

£620.00 ex. VAT £744.00 inc. VAT

M105 - 123 - 1513 - 2523 - 3533 - 4511.021195.04226
